    SELF-LOADING DRUM TRAILER
    SELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILERSELF-LOADING DRUM TRAILER

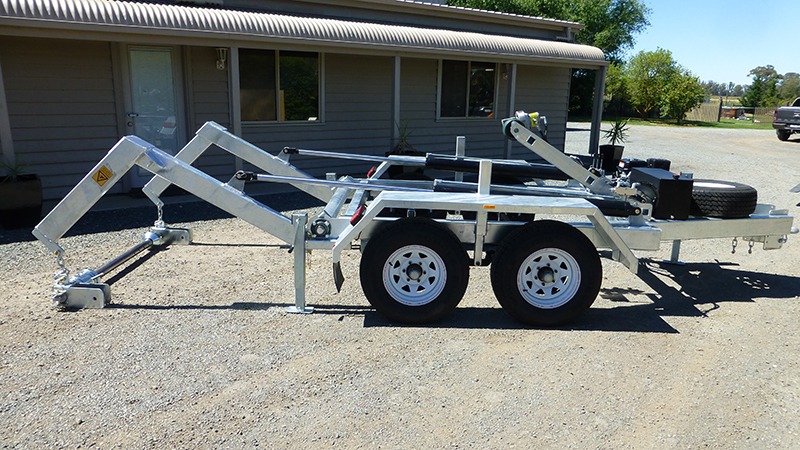

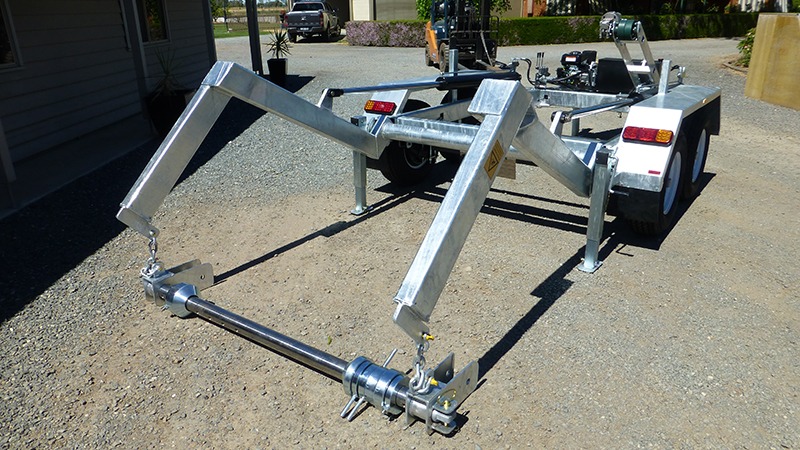

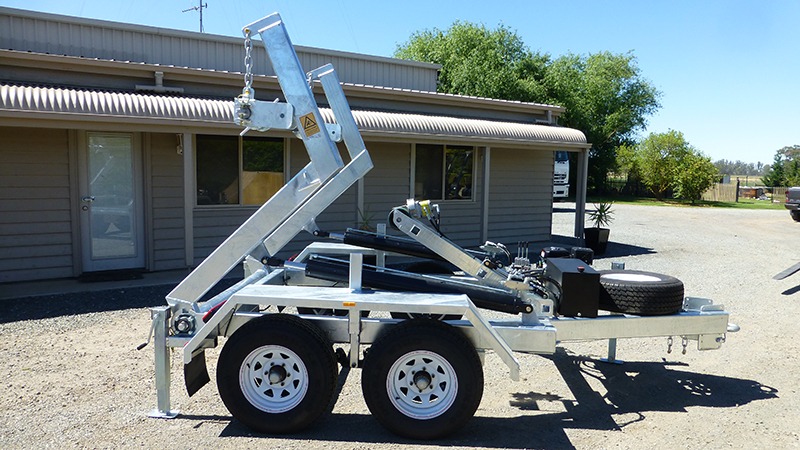

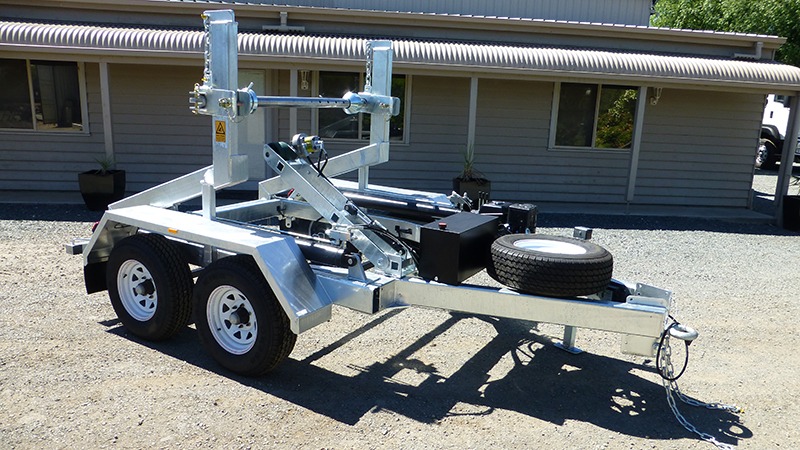

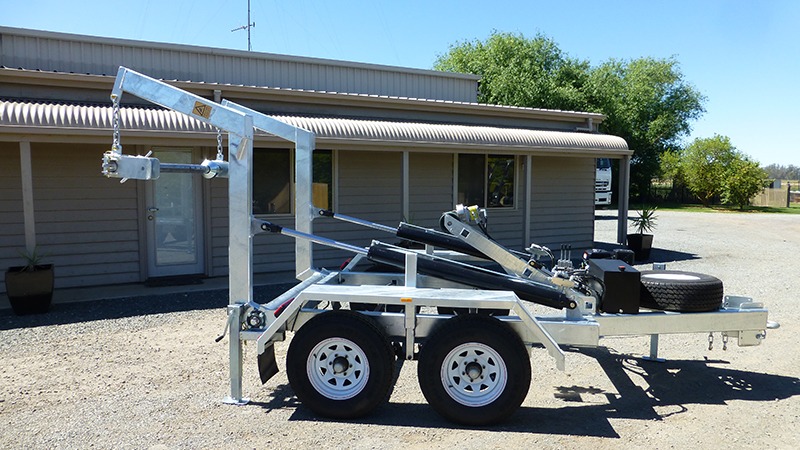

    2.5T Self Loading Drum Trailer – Jinker

    Enquire Now
    Category: Winch
    • Specifications
    • Overall Length: 4300mm
    • Overall Width: 2500mm
    • Height (unladen): 2400mm
    • Maximum Load: 2500kg*
    • Tare Weight: 1100kg
    • ATM (fully laden): 3500kg
    • Max Drum Diameter: 2600mm
    • Max Drum Width: 1200mm

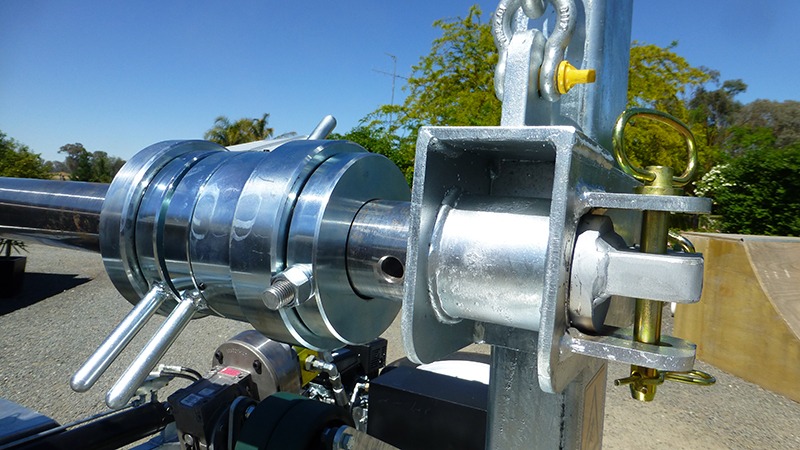

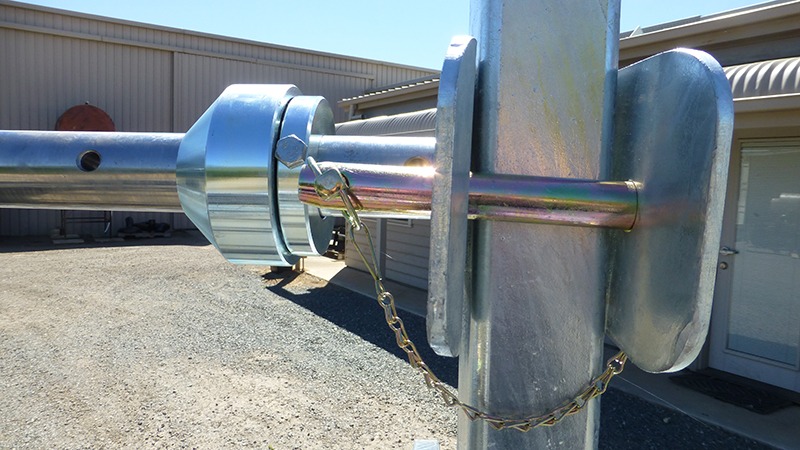

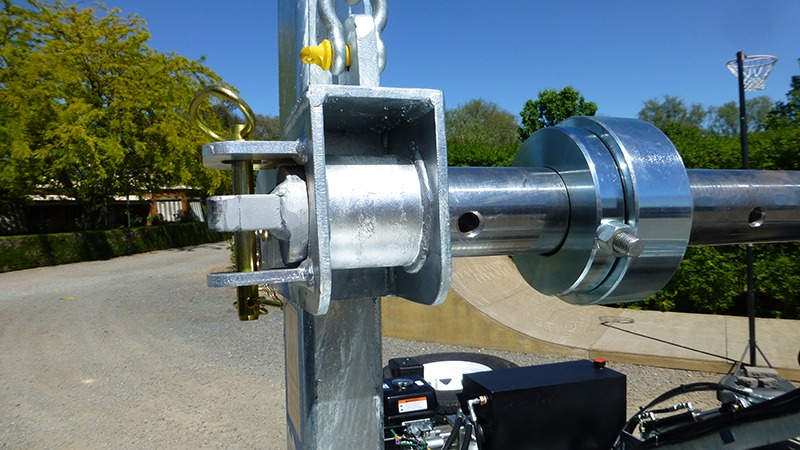

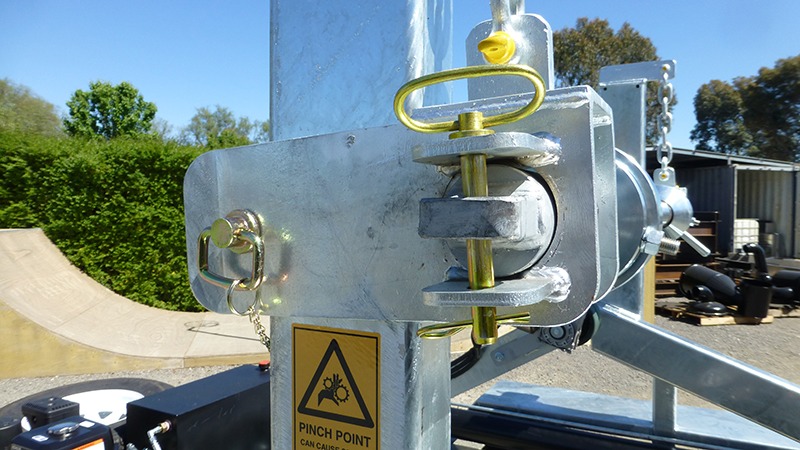

    • Spindle Shaft Diameter: 77mm
    • Hydraulic Drum Drive: max 200kg line pull

    * Total mass cannot exceed 3500kg ATM

    STANDARD FEATURES

    • Heavy duty trailer chassis, hot dipped galvanised finish.
    • 4 tonne tandem axle assembly.
    • Electric brakes on both axles.
    • 15-inch heavy duty rims with new 8 ply tires including spare.

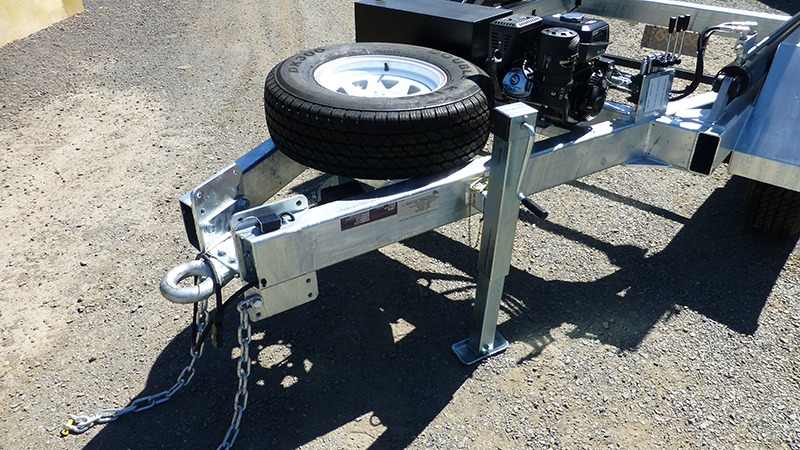

    • Ring pull hitch.
    • Safety chains.

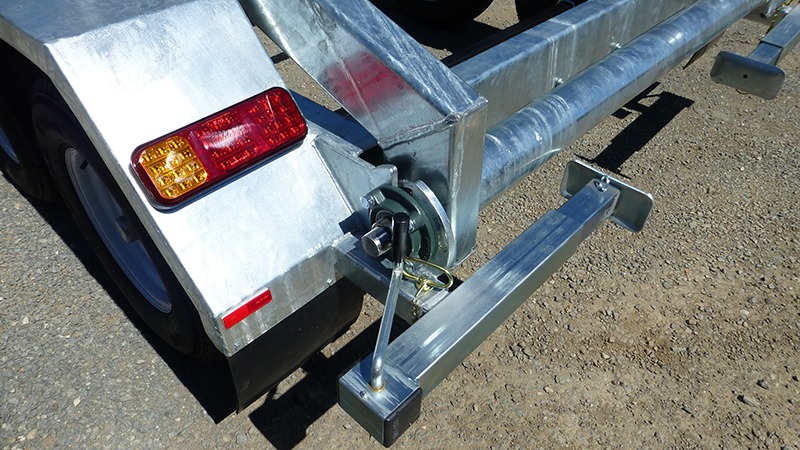

    • 12/24VDC LED tail lights with 7 pin flat trailer plug.

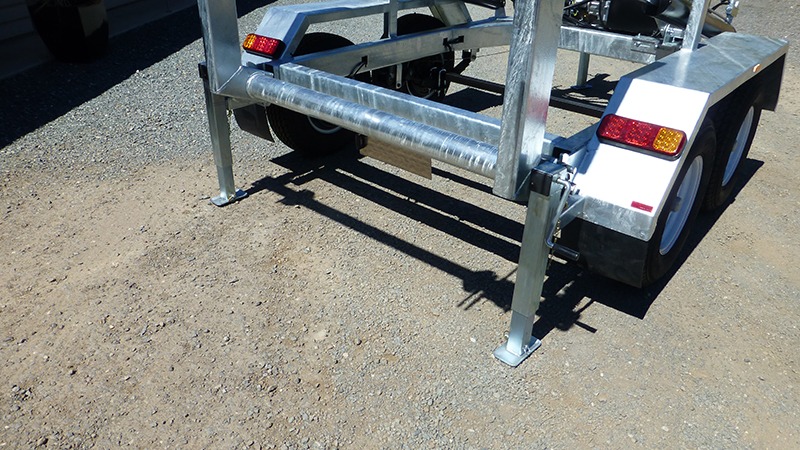

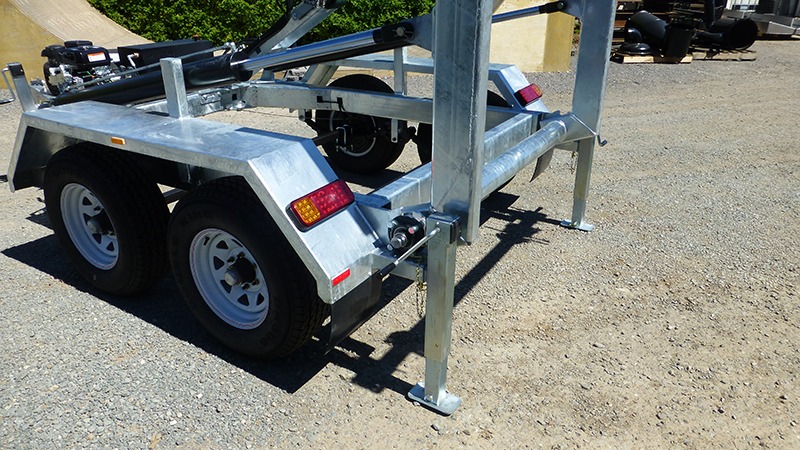

    • Wind down front and rear stabiliser legs.

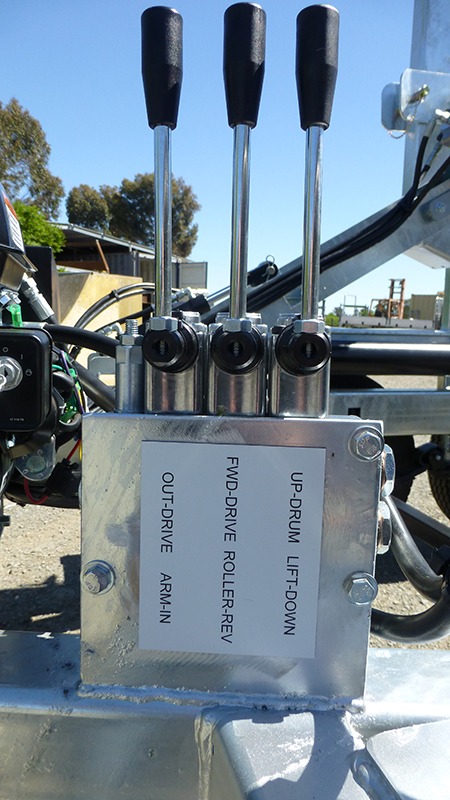

    • 7HP Kohler Petrol Hydraulic power pack – pull start.
    • Axle assemblies, springs and ring pull painted as per manufacturers standards.
