Description

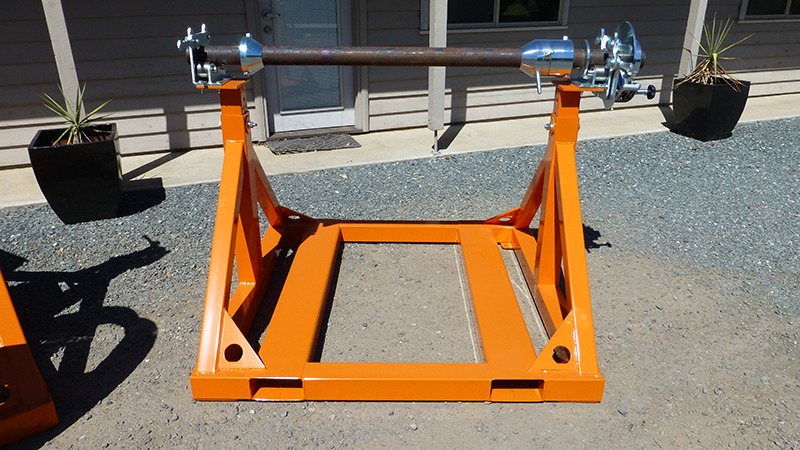

5 Tonne skid-mount cable drum stand.

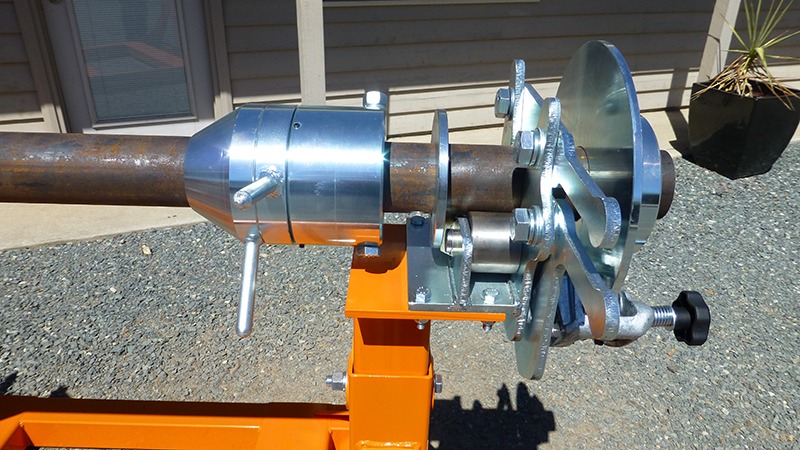

Adjustable disc brake / manual unwind dampening.
Mechanical brake = 220kg @ 0.95m.
Extra heavy-duty mild steel fabricated frame – powder coated finish.

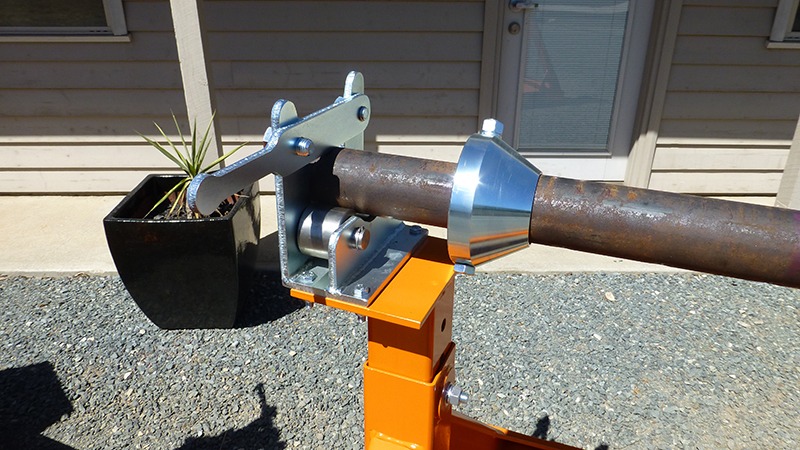

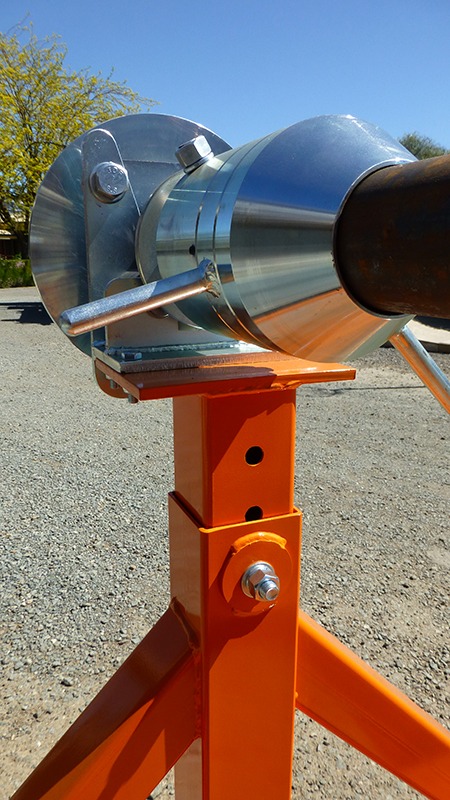

75mm hollow shaft spindle with adjustable drum lock spools.
Stainless-steel heavy-duty spindle rollers with quick latch spindle lock.
Heavy duty tie down lugs.
Full width forklift slippers incorporated into the base frame.
Maximum load mass = 5000kg.
Height unladen = 1675mm.
Mass unladen = approximately 250kg.
Footprint = 1600mm wide x 1600mm long (1750mm spindle length)
Handle drums up to 1200mm wide x 2800mm diameter.

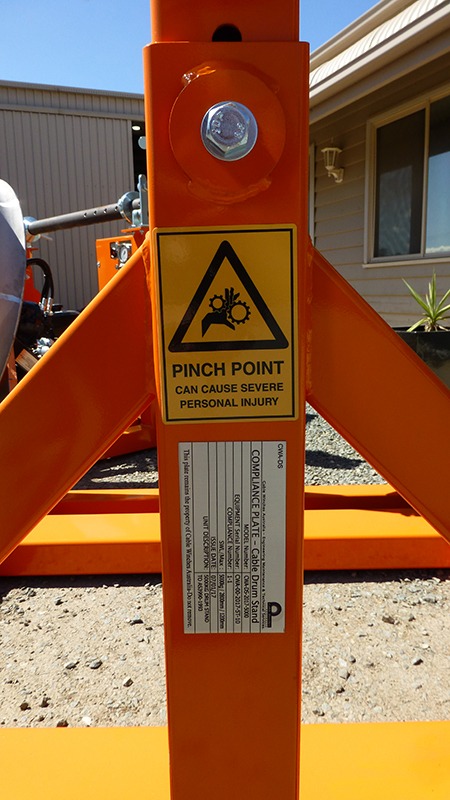

Certification label and Standard Operating Procedures label fitted.

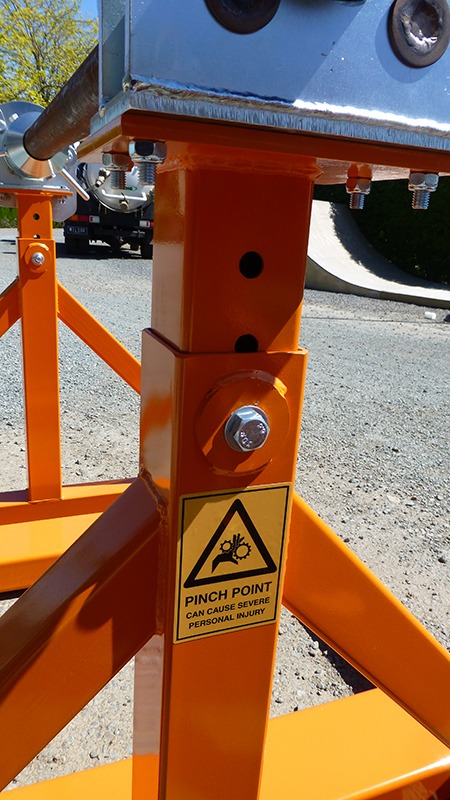

NEW DESIGN includes telescopic “A”frame uprights allowing the cable drum to be lowered or raised depending on the drum diameter resulting in the centre of gravity being kept as low as possible.

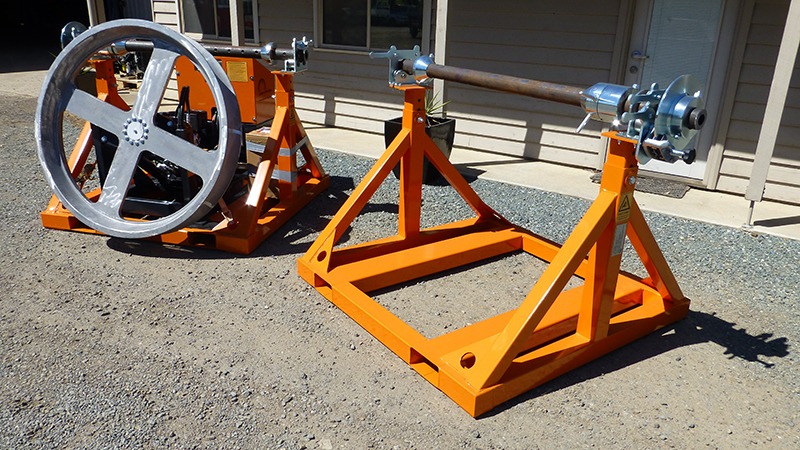

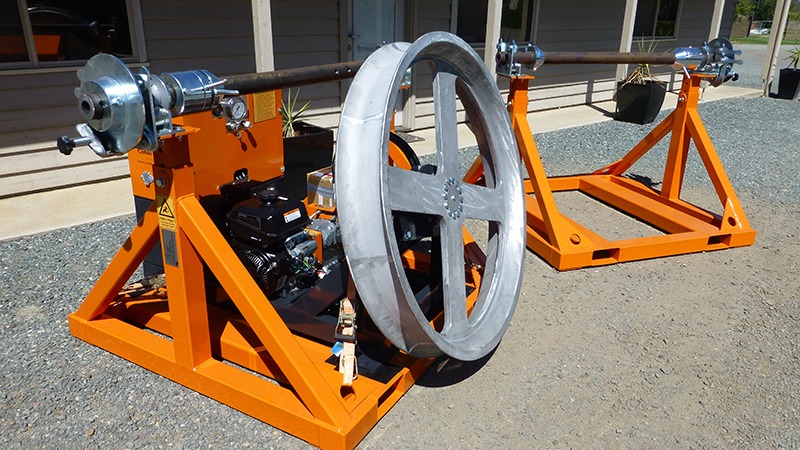

Note photos included show our new design with a fibre winch mounted on top ready for freight, this reduces freight on packaged deals.
