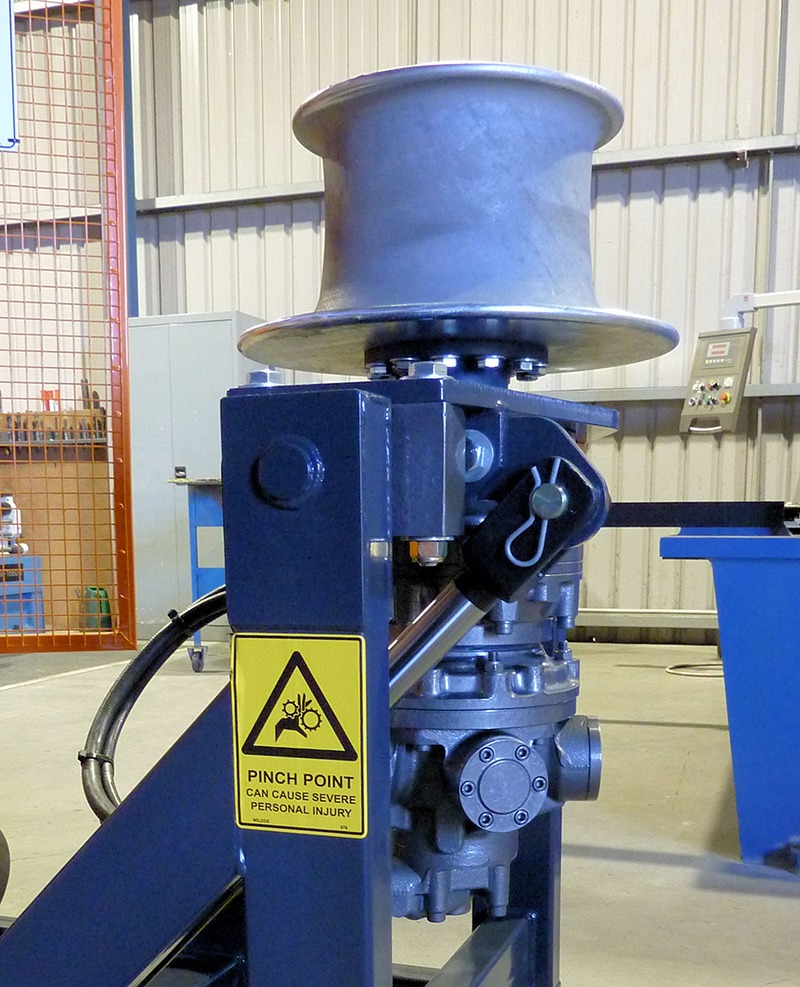

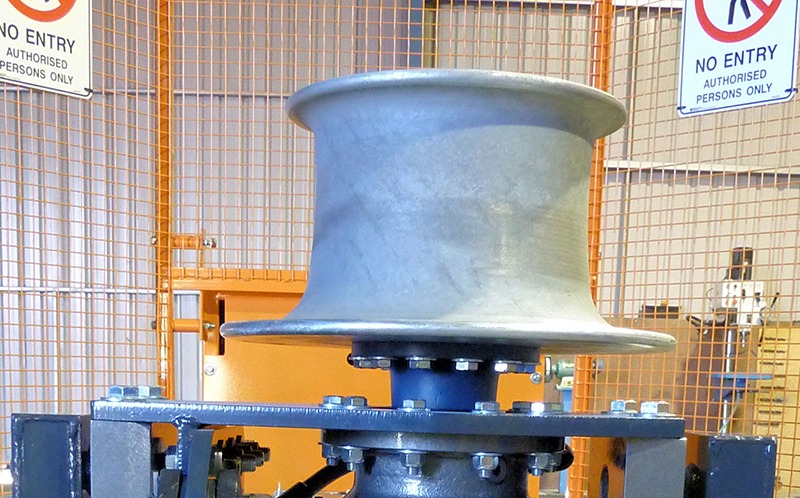

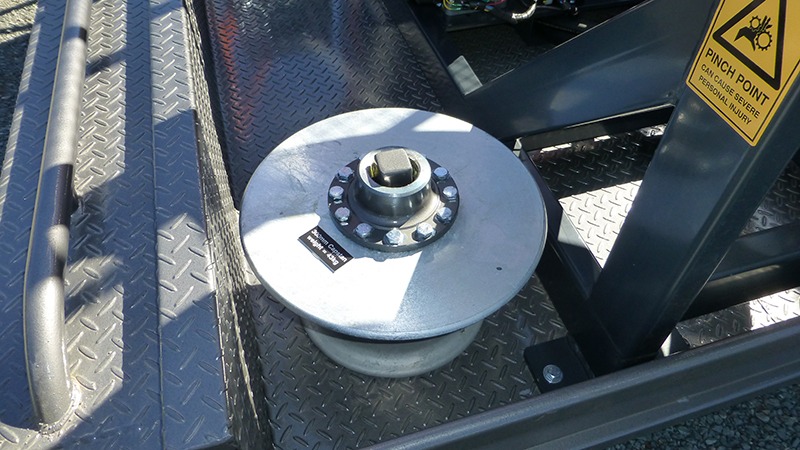

300mm Capstan 0-30kN – not suitable for fibre
CNC Milled from billet mild steel then sink plated, it is fitted with its own splined hub making for a quick change over from the 1200mm capstan. This can only be used on winches fitted with the Power Winch Kit gearbox mount plate and heavy duty pivot bearings.
1200mm Narrow Fibre Capstan 0-5kN
8 spoke cast aluminum wheel with 100mm throat – this is our original design but is now only available as a special order.

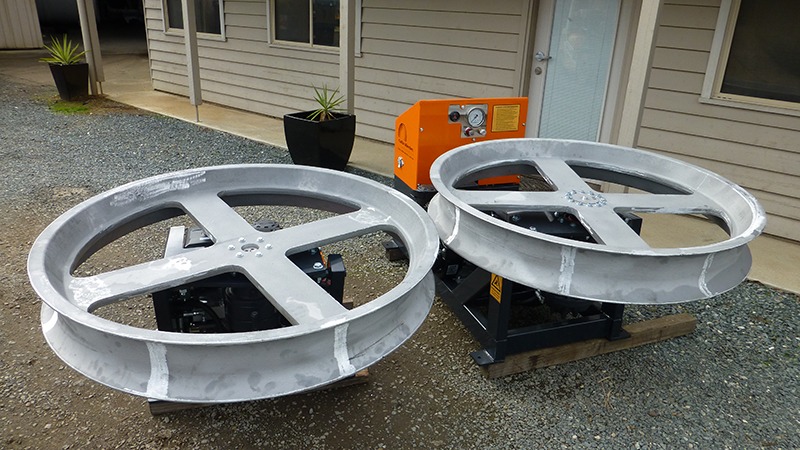

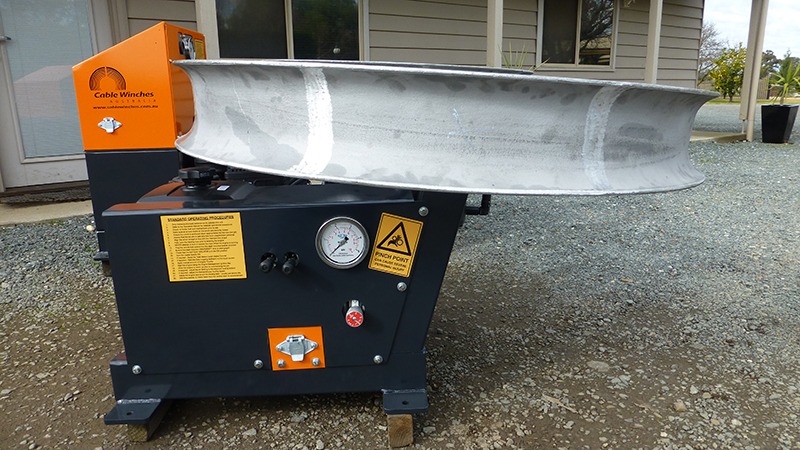

1200mm Wide Face Fibre Capstan 0-5kN
4 spoke cast aluminum wheel with 150mm throat – standard issue.

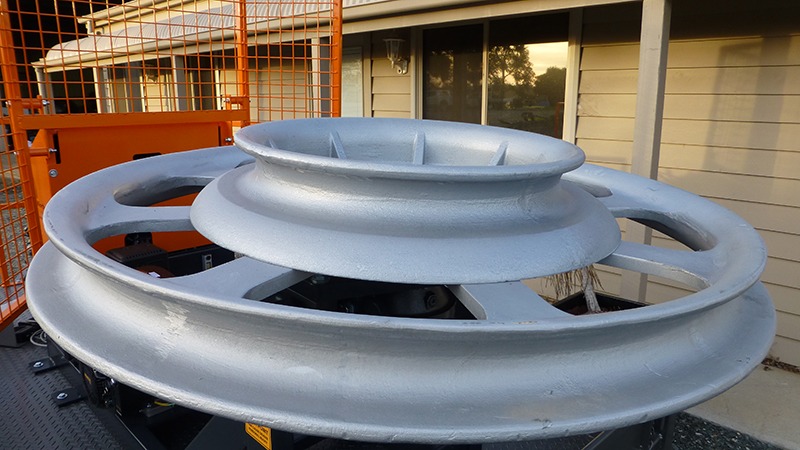

600mm Capstan 0-10kN
Cast aluminum wheel with 100mm throat – requires 1200mm capstan to bolt on.
