- Footprint of skid base = 1390mm long x 650mm wide.
- Overall height with capstan wheel horizontal = 750mm.
- Approximate total weight (wet) = 480kg.
- Heavy duty planetary gearbox and hydraulics.
- Wide faced 1.2m diameter cast aluminium capstan wheel.
- Fuel efficient, electric start 14 HP Kohler engine complete with hour meter.
- Full operator adjustable 0 – 5kN line tension.
- Full operator adjustable 0 – 80m/min capstan wheel rotation speed.
- Full function remote foot control capstan forward / reverse treadle switch, push button capstan tilt angle adjustment and large emergency engine stop.

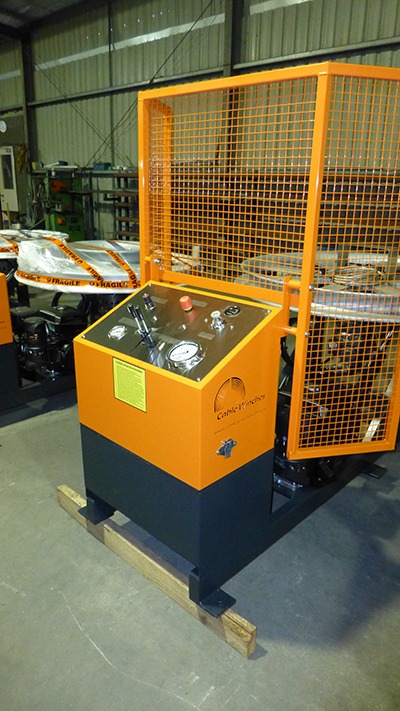

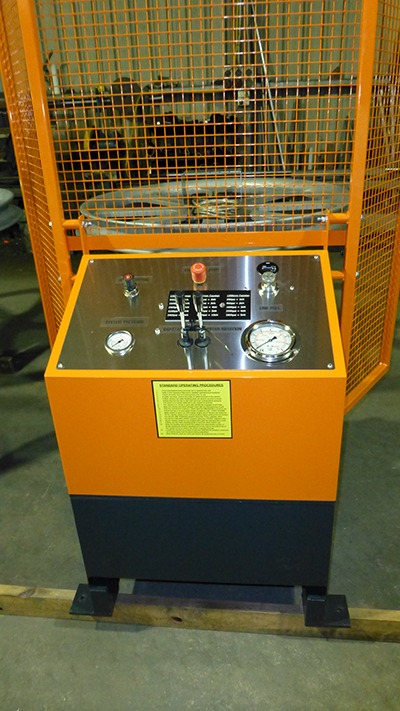

- Full operators dash board comprising system pressure gauge, kN gauge, kN line tension control, capstan speed control and manual operated joystick control for capstan tilt angle and forward / reverse capstan rotation.
- Fold down operators mesh guard.
- Mild steel, powder coated fabrication – std. charcoal / orange colour scheme, Corporate colours can be ordered as an option for a small extra cost.
- Standard Safety signs – nip points etc.
- Standard Operating Procedures sign.
- Operation Manual including full Hazard Identification and Risk Assessment, log book and factory calibration certification.

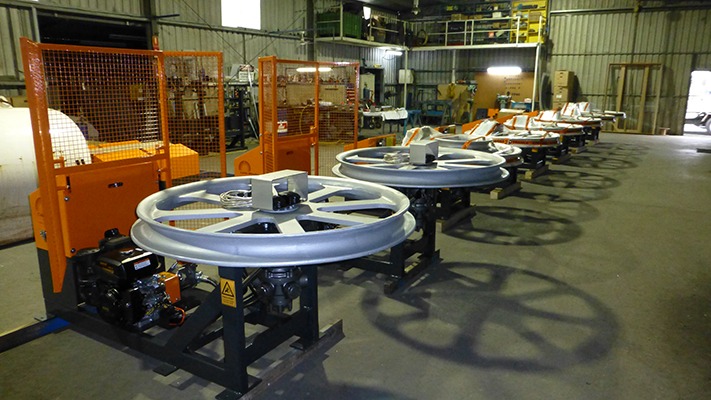

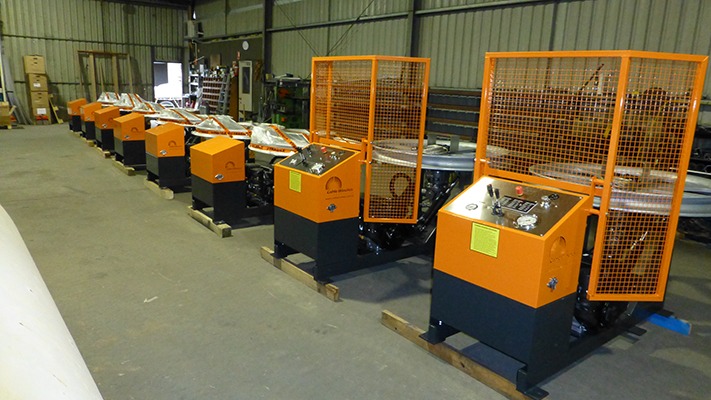

Series 4 Fibre Optic Cable Winch
This model was developed in collaboration with Kennards Hire to specifically service the requirements of their client Silcar. It boasts both the full operators dash as well as the multifunction foot control but no aerial feature.
