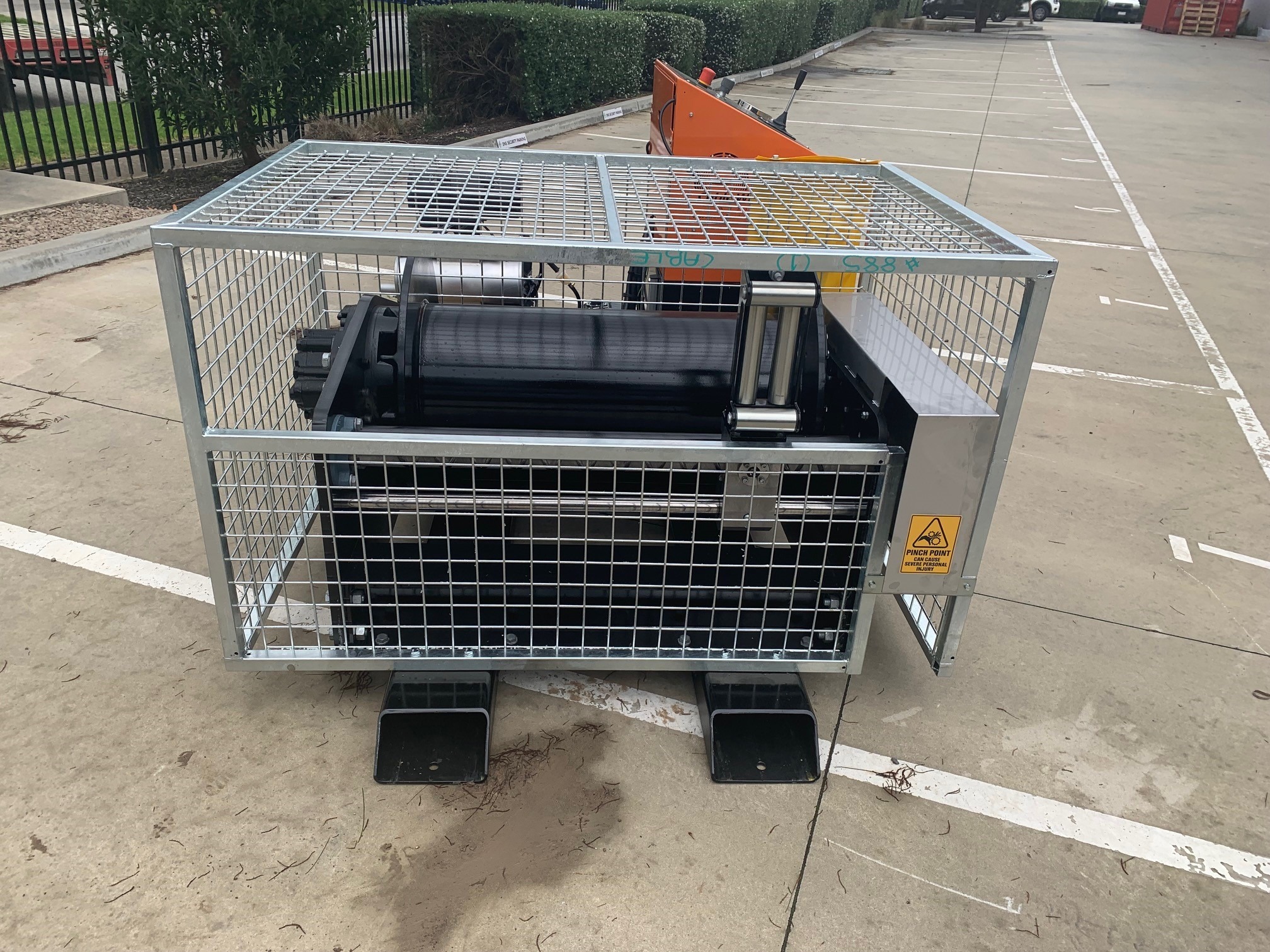

- Skid base frame sized to fit inside a 1500mm wide trailer.

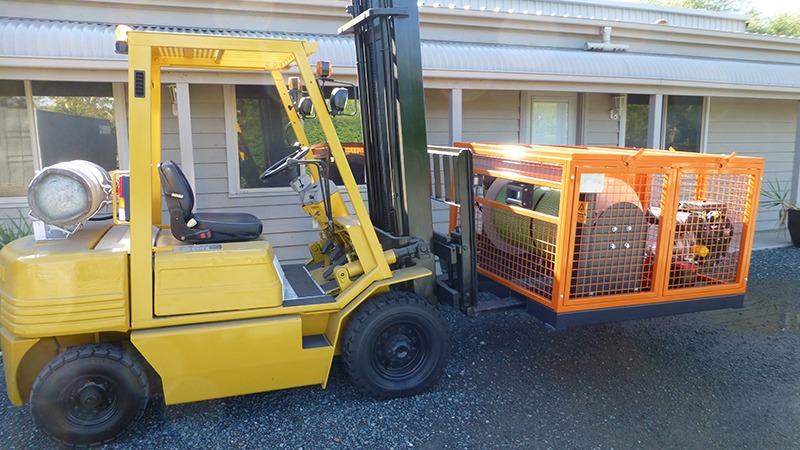

- Forklift slippers built into base for ease of handling.

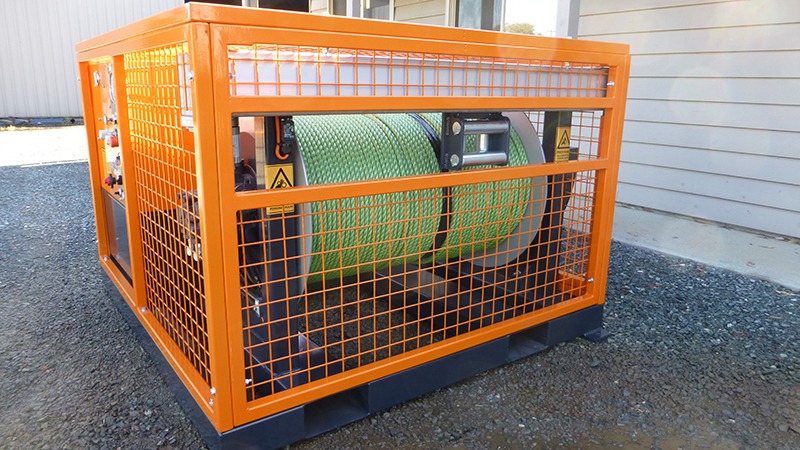

- Rope drum capable of holding 400 meters of 16mm diameter rope.
- Rope not included.
- Variable speed rope retrieval 0 to 20 meters per minute.
- Variable line haul tension 0 to 20kN (0 to 2000kg) with lockout system.
- Variable speed rope retrieval level wind with guide rollers.

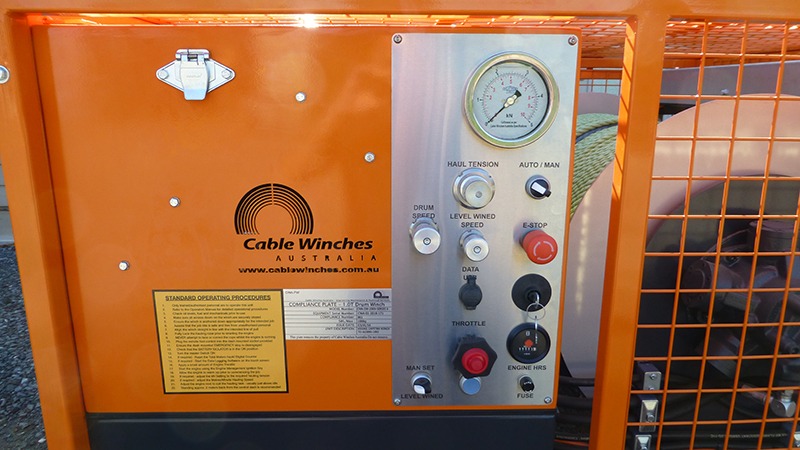

- 100mm diameter kN calibrated hauling tension gauge.
- Data Logger complete with software & lead for laptop data retrieval.
- Manual joystick control on drop down extension arm for operator safety.

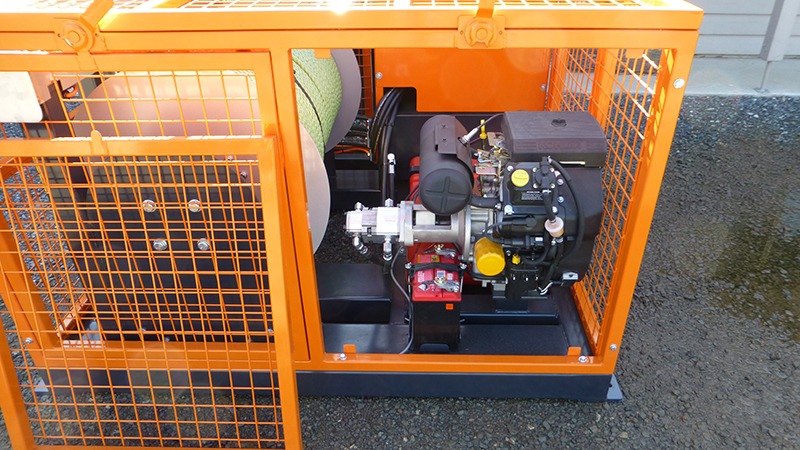

- Fuel efficient 23 H.P. Vee Twin EFI Electric Start Kohler engine.

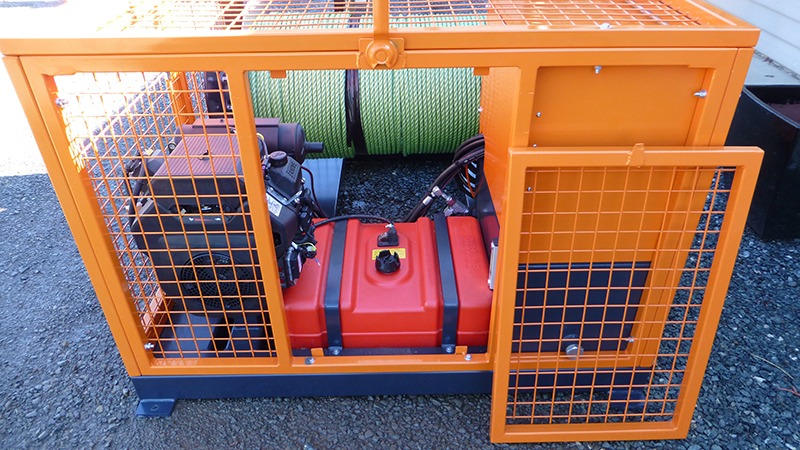

- 40 litre fuel tank complete with fuel gauge.
- Dual hydraulic pumps, 1 for the rope drum rotation and 1 for the level wind.
- Dual hydraulic motors, 1 for the rope drum rotation and 1 for the level wind.
- 40 litre oil reservoir with level sight glass, filler port and return line filter.

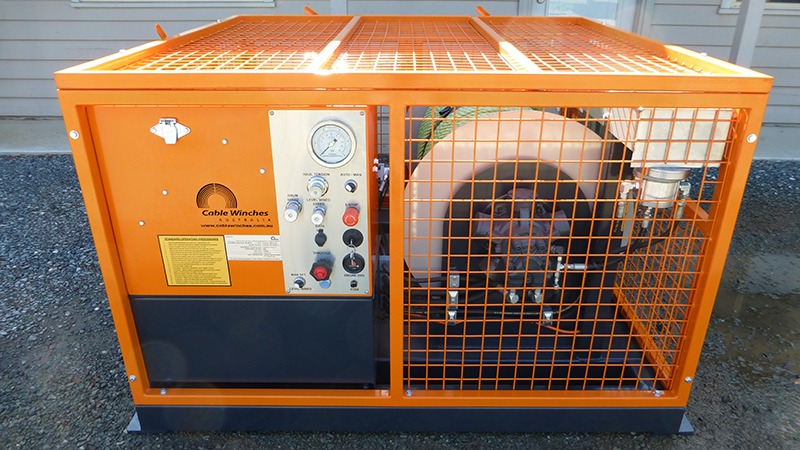

- Easy access control cabinet for gauge and control valves.

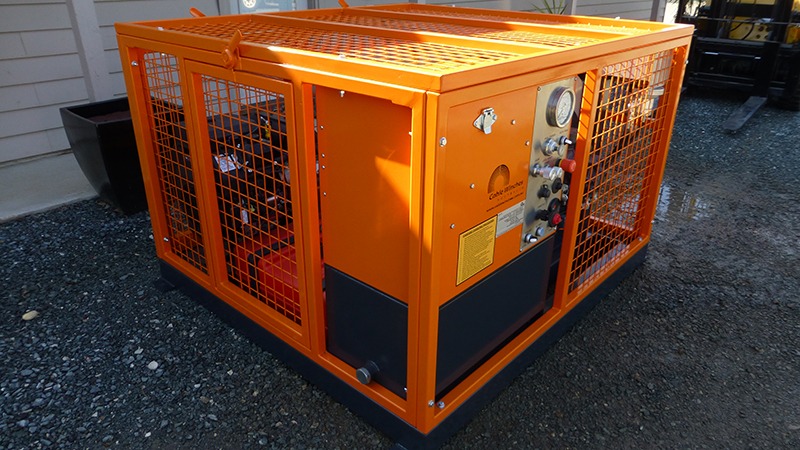

- Fully enclosed mesh guards to Australian Standards.
- Rope drum mild steel fabrication and hot dipped galvanised finish.
- Support frame, cabinet, tanks all mild steel fabrication powder coated finish.
- Australian Standards design certification and model identification label fitted.
- Standard Operating Procedures label attached to the control cabinet.
- Pinch Point signage appropriately positioned on the unit.
- 2 x Authorised Personnel Only signage, 1 mounted either side of winch.
- Operators Manual with full risk and hazard analysis, hard copy supplied with the winch and a PDF copy emailed to you.
